B03 Pruning machine

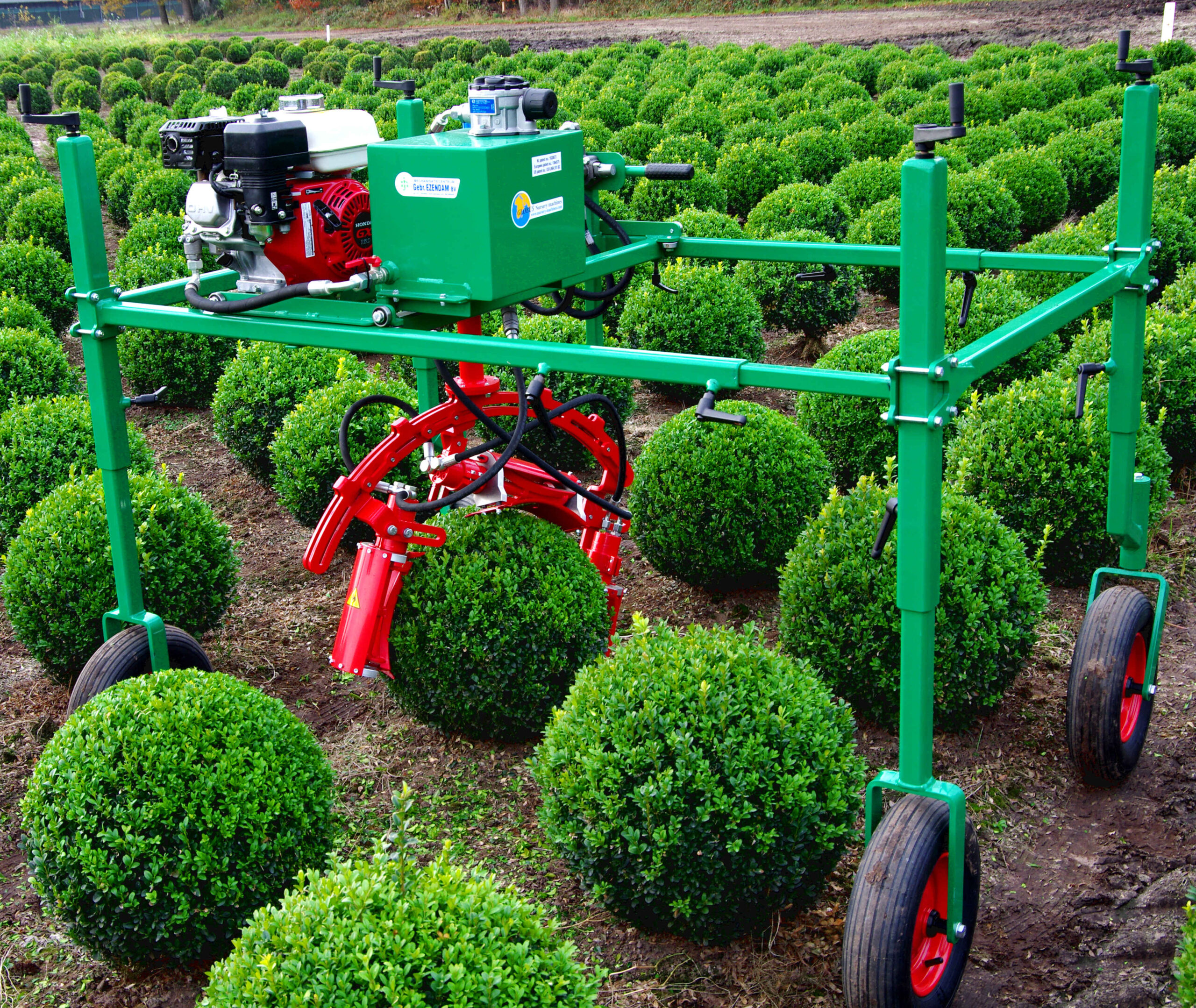

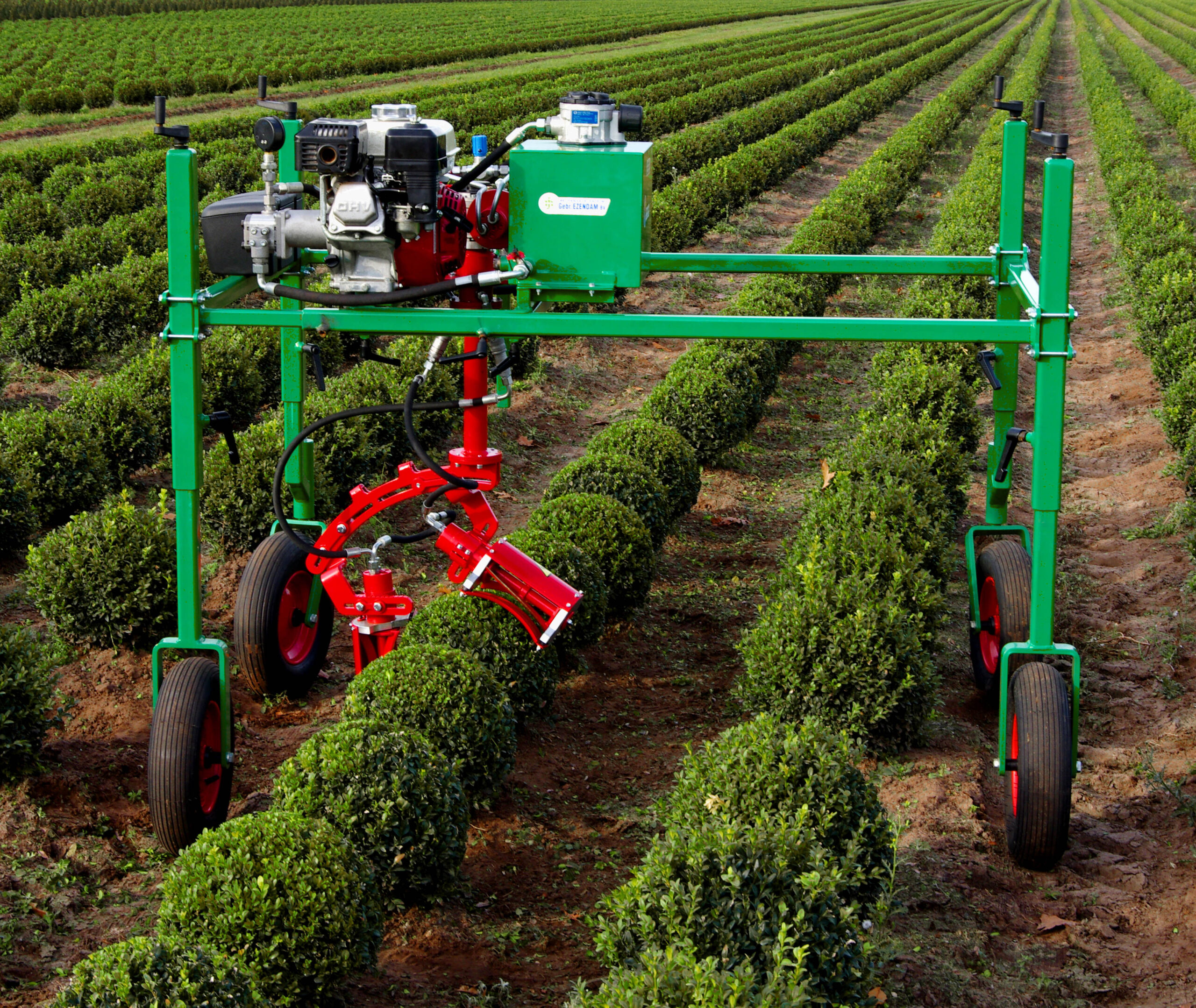

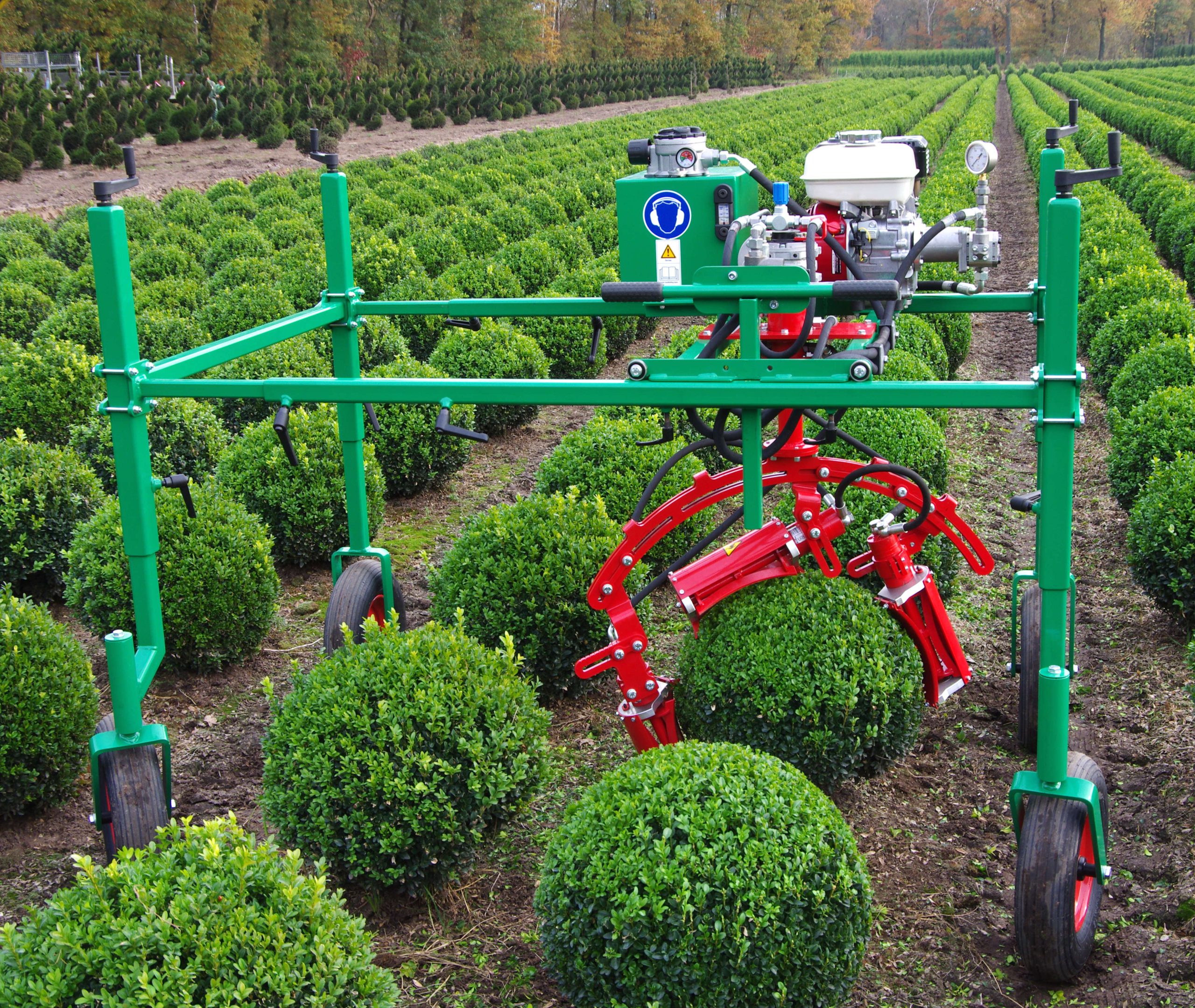

With the Globus B03 topiary trimming machine, various plants can be pruned into balls and cones. The machine is widely applicable for different plant dimensions. Both the cages and the hedge trimmer blades are removable and available in various sizes. The pruning machines for tree nurseries are available in different variants. The B03 is suitable for balls and cones up to 80 cm (reel mower) and up to 100 cm cones (hedge trimmer) and is standard equipped with a pruning unit for balls from 22 to 35 cm. Within the frame, the pruning units are manually axially adjustable, the track width is infinitely adjustable, and the B03 has optional hydraulic height adjustment. The B03 can also be optionally equipped with a Honda petrol engine.

till 100 cm

Manual

Self-propelled

New

Configurator

Request quote

Details

Machine type

Globus B03 Pruning Machine

Model version

Globus B03

Application

Pruning, Balls or cones

Motorization

Self-propelled, manual

Row distance adjustable

Yes

Track width adjustable

Yes (available from 150 to 200 cm)

Tire size

4.00x8 front, 4.00x8 rear

Options

2 wheel drive (hydraulic) optional with manual operation.
Crop protection on stainless steel wheels optional.
Hydraulic height adjustment. Electric motor.

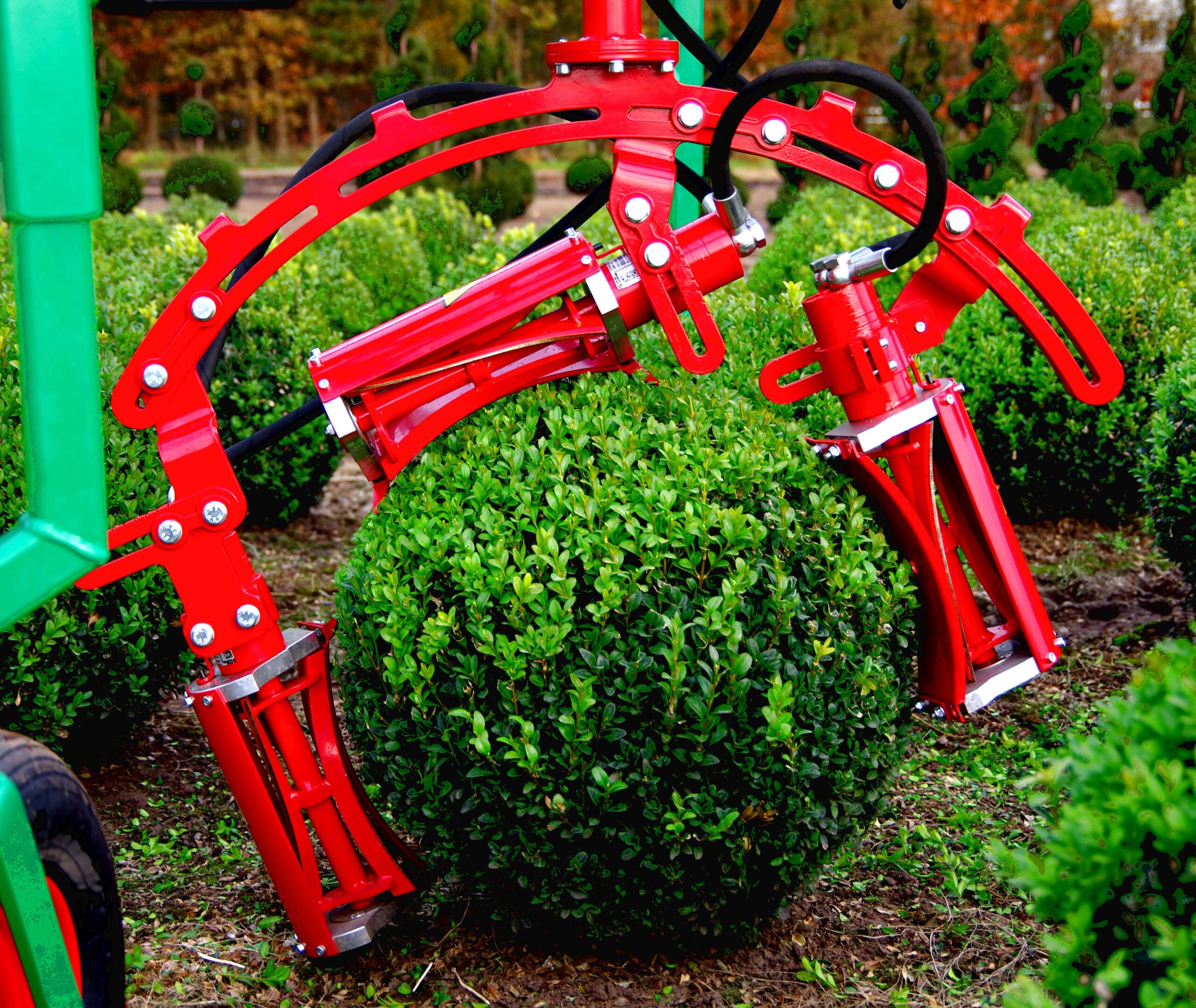

Pruning units for B03:
-17 to 25 cm, 22 to 35 cm, 35 to 50 cm, 50 to 80 cm (all adjustable).
Cylinder mower for cones 62 to 80 cm.
Hedge trimmer blade 100 cm.
